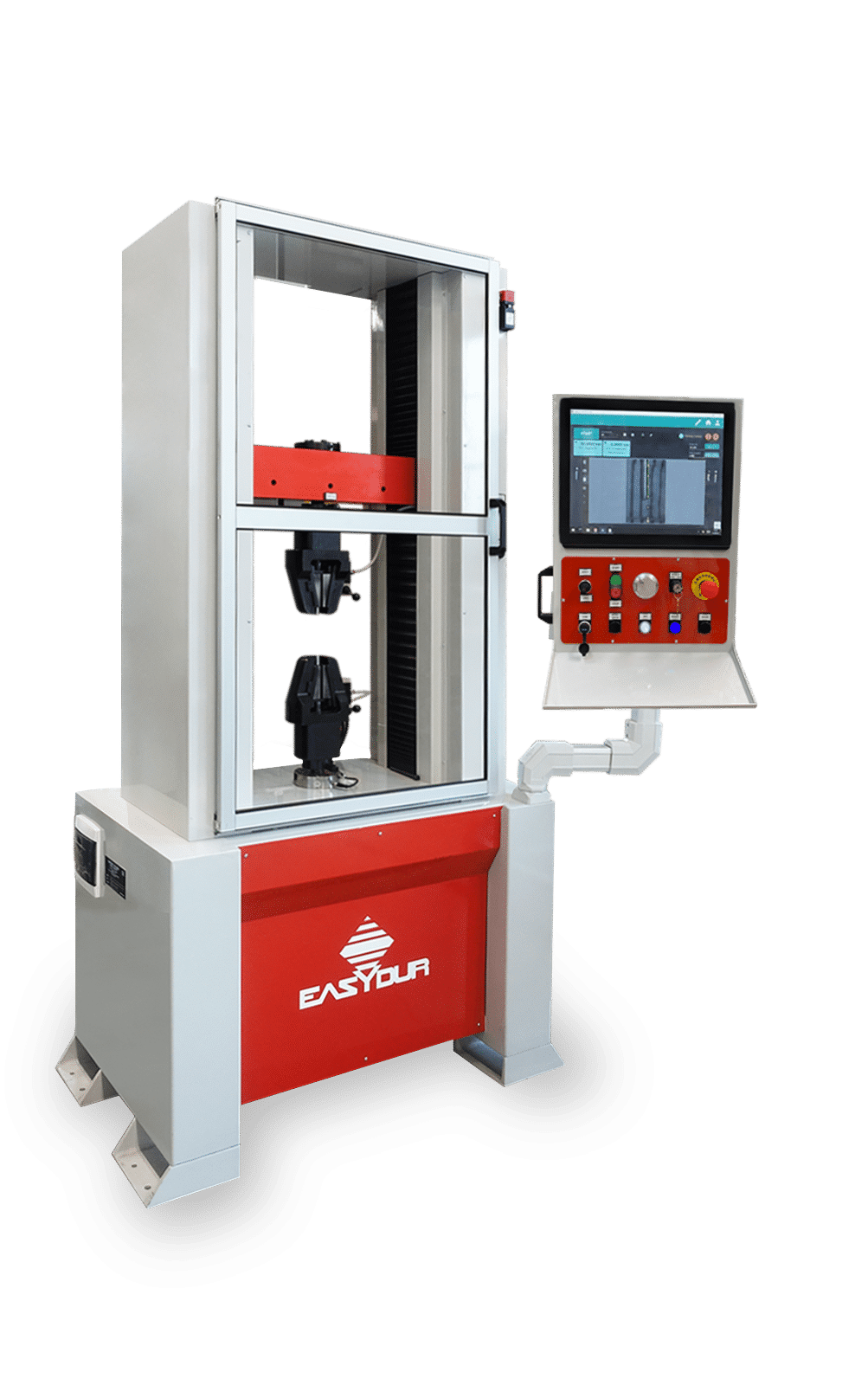

3MZ Tensile UTM Machine (15-50KN) – Tensile tests up to breaking point.

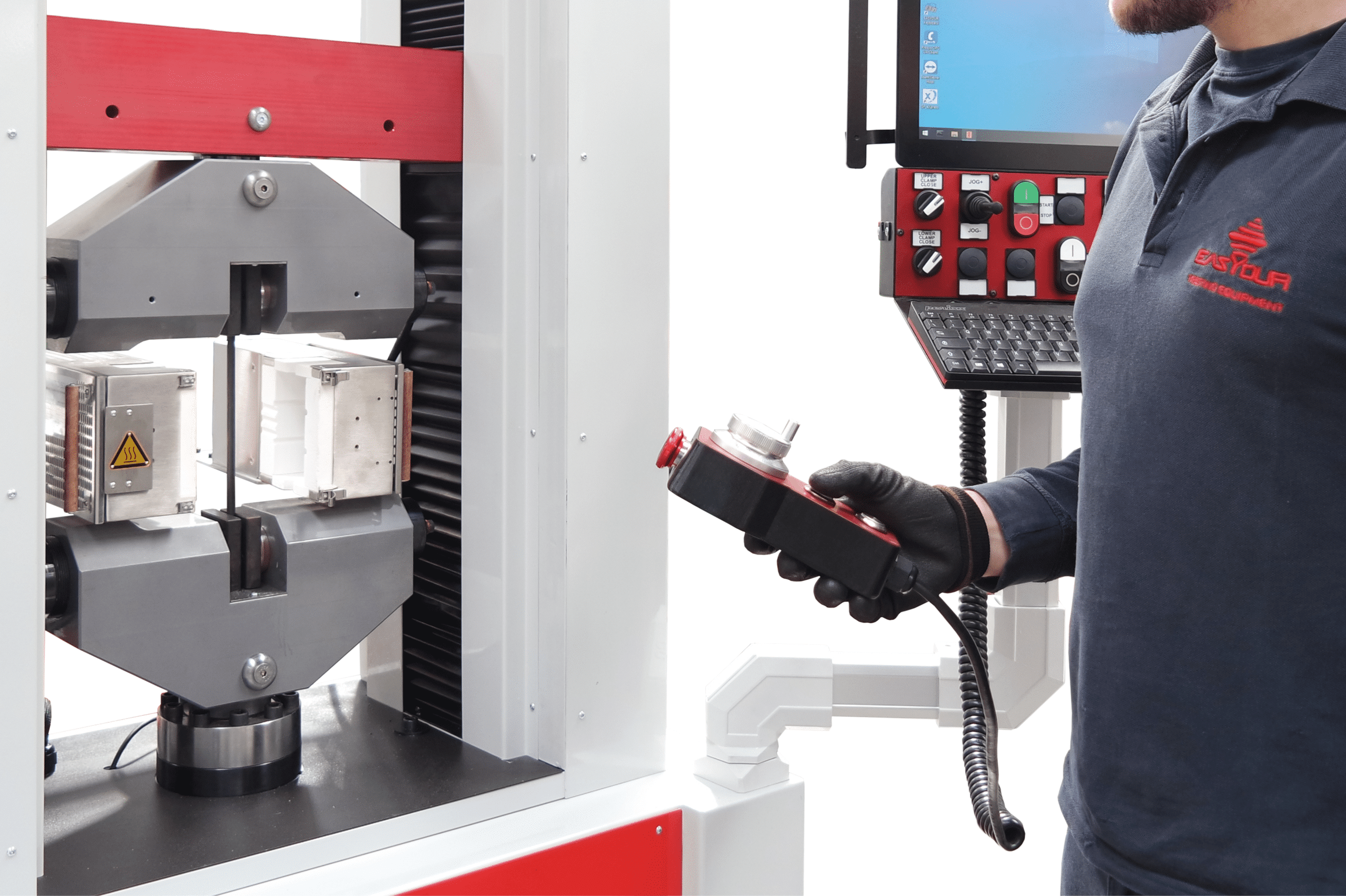

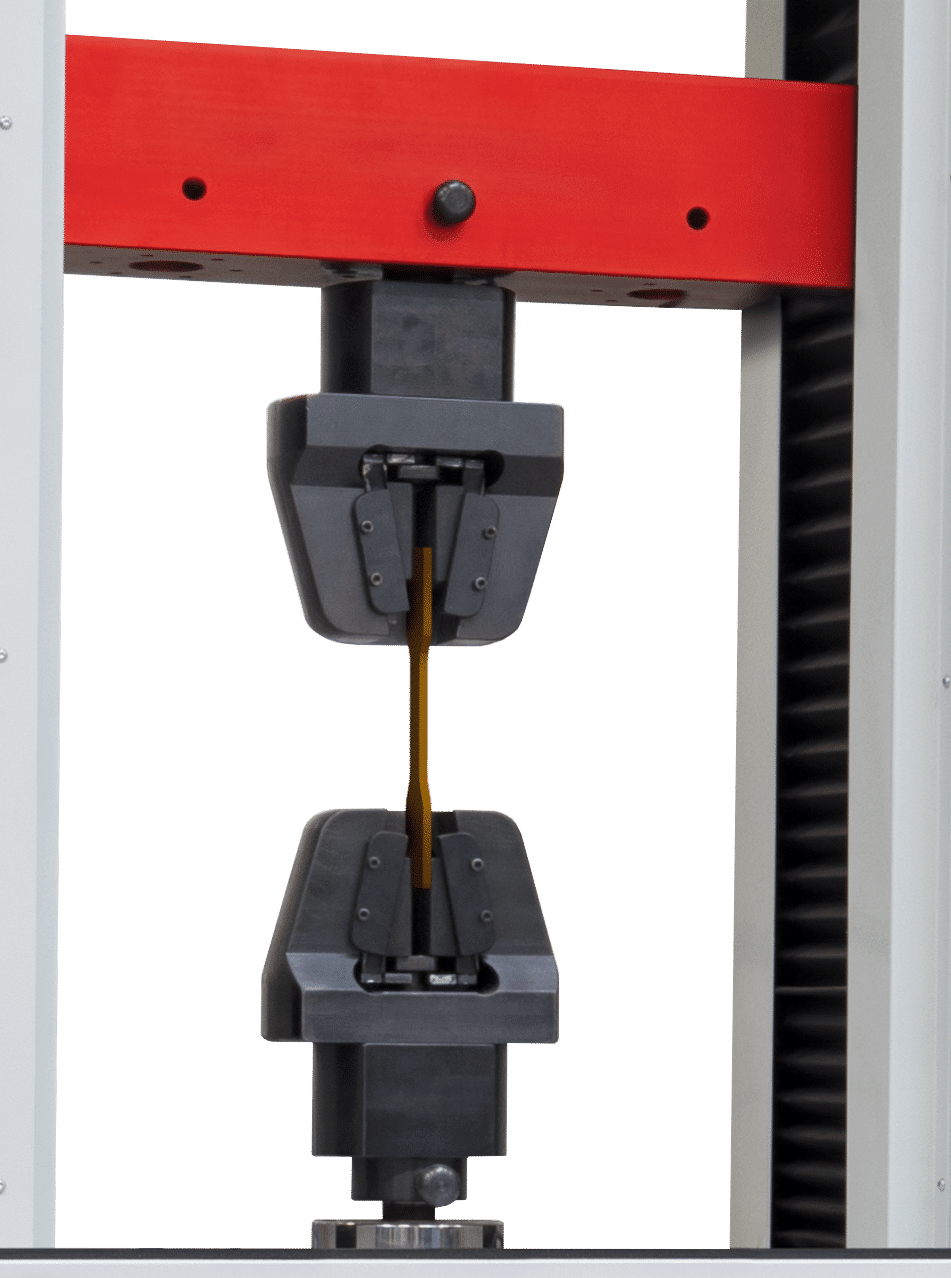

3MZ Tensile UTM Machine is the latest development of the so-called medium load instruments (being able to reach a load up to 50 kN, or 5 Ton). It’s equipped with pneumatic or mechanical grippers, and can also be used in conjunction with bending test equipment.

Main advantages of the 3MZ Tensile model :

• Possibility of adding up to 3 force cells

• The machines in the Dyno range are compatible with the EASYQS software. It is more suitable for low loads
• Using the buttons on the front panel for testing without using a previous program
• Possibility of customizing statistics, archives, certificates in Excel format using the embedded Windows software

Specifications :

• Force kN : 10 – 50
• Number of guide columns : 4
• Number of ball screw: 2
• Dimensions : 200 cm (height) x 150 cm (width) x 65 cm (depth)
• Weight : 500 kg
• Vertical Test space (without Grips) : 900 mm
• Horizontal Test space : ⌀ 450
• Testing speed Range min – max : 0,005 – 484 mm/min
• Position control resolution : ± 1 µm
• Frame axiale stiffness : 150 kn/mm
• Displacement measurement accuracy : ± 5 µm
• Testing speed accuracy : (+/-) 0,1%
• Calculated resolution (for example in tensile / compression direction) : 24 bits
• Data acquisation rate, internal : 10 kHz
• Data Acquisition Rate at the PC : 1 kHz
• Controller /Cycle Time : 1 kHz
• Power supply : Single Phase Voltage (230 VAC +/- 10%; 50 – 60 Hz)
• Operating Temperature : +10 to + 38 °C
• Storage Temperature : -40 + 66 °C
• Humidity Range : +10 + 90 %
• Interface for PC : Ethernet
• Drive System : AC Servomoteur Brushless
• Noise level at maximum test speed (dBA) : <75
